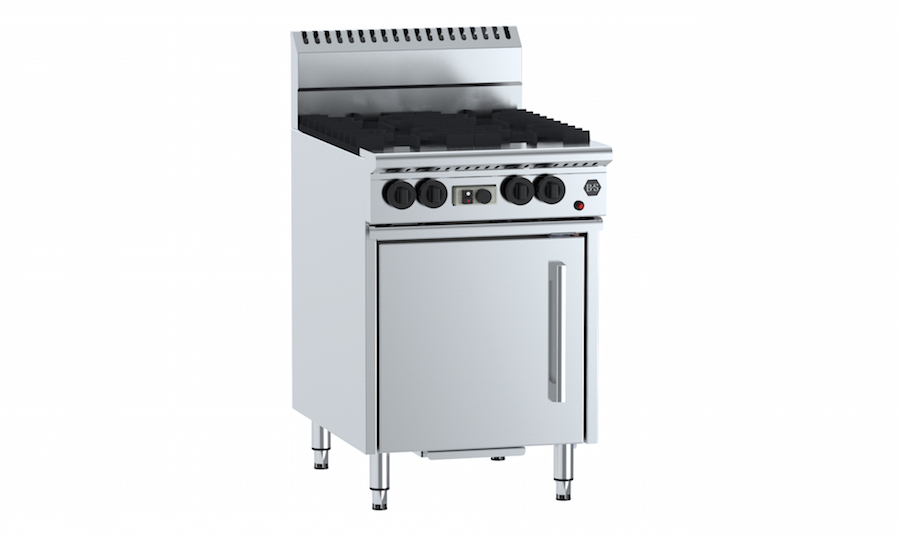

B+S Black Oven

The B+S Black series oven range has been designed to meet the varied demands of commercial kitchens and restaurants. Constructed using quality materials on a heavy-duty stainless steel frame, these units are built to last.

The oven is fitted with a U-shaped burner, which combines with natural convection processes to create an even distribution of heat throughout the oven’s chamber. A multi-setting gas valve enables enhanced regulation of flame setting.

Frontal access to all components makes maintenance easy, and all external surfaces are made of easy-to-clean polished stainless steel.

The oven burner cooktops can be combined with B+S grill plate and char broiler sections.

Features and Benefits

  • AISI 304 grade stainless steel
  • Heavy duty cast iron trivet
  • Combination of ‘U’ shaped burner and natural convection process allows for even distribution of heat through oven chamber
  • Barn doors for greater access to cooking area
  • Powerful 30Mj cooktop section burner comes in two pieces for easy cleaning
  • Multi-setting gas valve as standard for greater regulation of flame setting
  • Easy to clean fat spillage trays
  • Heavy duty mild steel plate (GRP section)
  • Heavy duty cast iron cooking J grates and radiant hoods (CBR section)
  • Heavy duty stainless steel frame construction

Optional Extras

  • Flame failure device is optional for Boiling Top burners
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
OV-SB4 600 840 1130 144 143
OV-SB6 900 840 1130 218 222
OV-SB2-CBR3 600 840 1130 117 113
OV-SB2-GRP3 600 840 1130 106 105
OV-GRP3-CBR3 600 840 1130 83 75
OV-GRP3-CGR3 600 840 1130 86 93
OV-SB4-CBR3 900 840 1130 191 192
OV-SB4-GRP3 900 840 1130 180 184

B+S Black Boiling Top

The B+S Black series standard and combination boiling top incorporates a solid stainless steel frame that’s built to last. The unit also features an open stand and under shelf, which is ideal for storing cooking utensils.

A highly efficient and powerful 30 Mj single ring burner readily meets the requirements of a demanding kitchen. Each burner is fitted with a multi-setting gas valve, enabling enhanced flame regulation. Maintenance is made easy through frontal access to all components.

This boiling top can be combined with B+S grill plate, char grill and char broiler sections.

Features and Benefits

  • AISI 304 grade stainless steel
  • Powerful 30Mj cooktop section burner comes in two pieces for easy cleaning
  • Multi-setting gas valve as standard allowing for greater regulation of flame setting
  • Heavy duty cast iron trivets
  • Open stand with undershelf
  • Easy to clean fat spillage tray
  • Front access to all components make service easy
  • Heavy duty stainless steel frame construction
  • Heavy duty mild steel plate (GRP section)
  • Heavy duty cast iron cooking J grates and radiant hoods (CBR section)
  • Heavy duty cast iron cooking J grates and volcanic rocks (CGR section)

Optional Extras

  • Custom made sizes
  • Flame failure device is optional for Boiling Top burners
  • Other combination models are also available
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
BT-SB2 300 840 1130 60 60
BT-SB4 600 840 1130 120 120
BT-SB6 900 840 1130 180 180
BT-SB8 1200 840 1130 240 240
BT-SB2-CBR3 600 840 1130 93 90
BT-SB2-CGR3 600 840 1130 86 89
BT-SB2-GRP3 600 840 1130 82 82
BT-GRP3-CBR3 600 840 1130 55 52
BT-SB2-CBR6 900 840 1130 126 120
BT-SB2-CGR6 900 840 1130 112 118
BT-SB2-GRP6 900 840 1130 104 104
BT-GRP6-CBR3 900 840 1130 77 74
BT-GRP6-CGR3 900 840 1130 70 69
BT-GRP6-CGR3 900 840 1130 70 73
BT-GRP3-CBR6 900 840 1130 88 82
BT-GRP3-CGR6 900 840 1130 74 80
BT-SB4-CBR3 900 840 1130 153 150
BT-SB4-CGR3 900 840 1130 146 149
BT-SB4-GRP3 900 840 1130 142 142
BT-SB6-CBR3 1200 840 1130 213 210
BT-SB6-CGR3 1200 840 1130 206 209
BT-SB6-GRP3 1200 840 1130 202 202

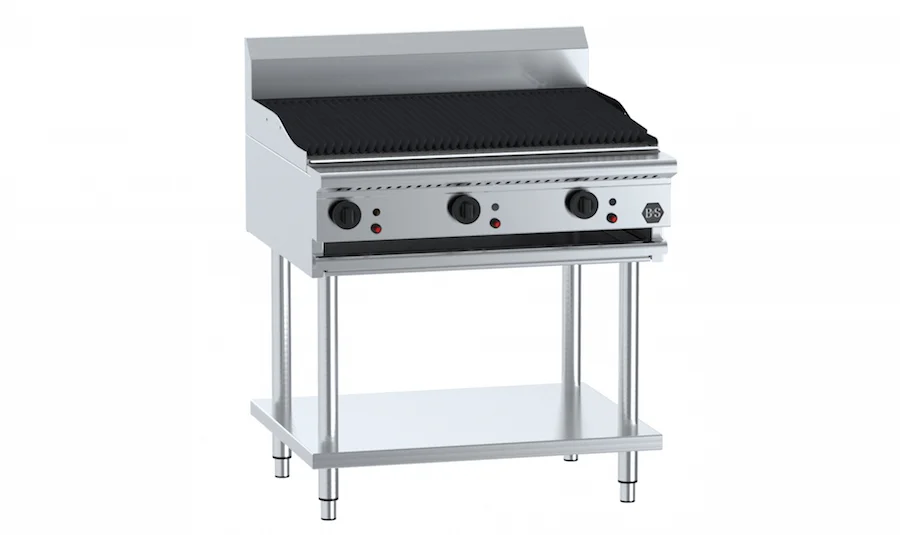

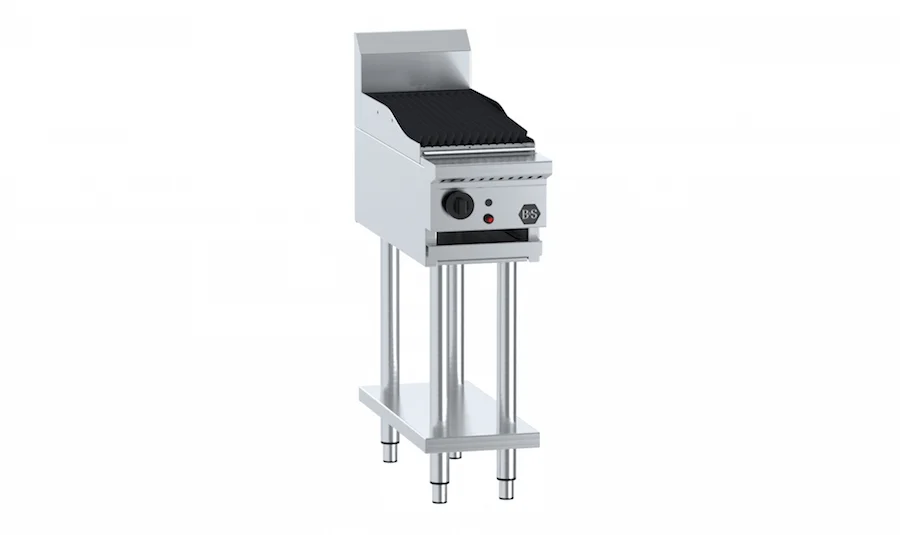

B+S Black Char Broiler

The B+S Black series char broiler is mounted on an open stand with an under shelf ideal for storing cooking utensils. The cooking surface consists of heavy duty cast iron grates with special drainage channels, which direct fat to the grease trough located at the front of the unit. A cast-iron hood placed above the 34 Mj burners radiates heat evenly across the grates, creating an ideal surface for grilling.

Each burner is fitted with a flame failure safety device, piezo ignition and a multi-setting gas valve allowing for more controlled flame regulation. Frontal access to all components makes maintenance easy.

The B+S char broiler is available in three standard sizes, and can be combined with boiling tops and grill plates to form various configurations to suit your cuisine style.

Features and Benefits

  • AISI 304 grade stainless steel
  • Heavy duty cast iron cooking J grates
  • Piezo ignition and flame failure device
  • Open stand with under shelf
  • Multi-setting gas valve as standard allowing for greater regulation of flame setting
  • Frontal access to all components make service easy
  • Easy to clean fat spillage trays
  • Heavy duty stainless steel frame construction
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
CBR-3 300 840 1130 33 30
CBR-6 600 840 1130 66 60
CBR-9 900 840 1130 99 90
CBR-12 1200 840 1130 132 120

B+S Black Grill Plate

The B+S Black series grill plate is mounted on an open stand with an under shelf, ideal for storing cooking utensils. The cooking surface comprises a mild steel plate heated by aluminised tubular burners for even heat dispersion.

Each burner is fitted with a flame failure safety device, piezo ignition and a multi-setting gas valve, allowing greater regulation of the flame. Maintenance is made easy through frontal access to all components.

The grill plate is available in three standard sizes, and can be combined with B+S boiling top and char broiler sections in a custom configuration to suit your cuisine style.

Features and Benefits

  • AISI 304 grade stainless steel
  • Heavy duty mild steel plate
  • 22Mj per burner
  • Piezo ignition and flame failure device
  • Open stand with under shelf
  • Multi-setting gas valve as standard allowing for greater regulation of flame setting
  • Frontal access to all components make service easy
  • Easy to clean fat spillage trays
  • Heavy duty stainless steel frame construction
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
GRP-3 300 840 1130 22 22
GRP-6 600 840 1130 44 44
GRP-9 900 840 1130 66 66
GRP-12 1200 840 1130 88 88

B+S Black Char Grill

The B+S Black series char grill is mounted on an open stand with an under shelf ideal for storing cooking utensils. The cooking surface consists of heavy duty cast iron grates with special drainage channels that direct fat to the grease trough located at the front of the unit. These grates are heated by grilling rocks placed above the 26 Mj burners, which evenly radiate heat to create an ideal surface for grilling.

Each burner is fitted with a flame failure safety device, piezo ignition and a multi-setting gas valve, enabling enhanced flame regulation. Maintenance is made easy through frontal access to all components.

The B+S char grill is available in three standard sizes, and can be combined with boiling tops and grill plates to form various configurations to suit your cuisine style.

Features and Benefits

  • 304 grade stainless steel used
  • Heavy duty cast iron cooking J grates
  • 25Mj per burner
  • Piezo ignition and flame failure device
  • Open stand with under shelf
  • Multi-setting gas valve as standard allowing
  • for greater regulation of flame setting
  • Frontal access to all components make service easy
  • Easy to clean fat spillage trays
  • Heavy duty mild steel frame construction
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
CGR-3 300 840 1130 26 29
CGR-6 600 840 1130 51 57
CGR-9 900 840 1130 77 86
CGR-12 1200 840 1130 104 114

B+S Black Turbo Fryer

The B+S Black series turbo fryer has been designed on a stainless steel cabinet frame. It is built with a highly efficient ceramic lined infrared burner which radiates the heat evenly along the pan. This assists in temperature recovery time while also reducing gas consumption.

Each pan has been designed to maximise oil heat recovery, which is essential during peak periods. The deep cool zone prolongs the life of the oil as any sediment or carbonised food particles fall to the bottom of the pan, removing impurities from the cooking area. All units are complete with two baskets, a false base and a night cover.

Features and Benefits

  • AISI 304 grade stainless steel
  • Oil temperature thermostatically regulated
  •  Stainless steel constructed pan with centre cool zone
  • Over-temperature safety cut-out switch
  • 22 litre oil capacity
  • Ceramic lined infra-red burner
  • 2mm thick stainless steel pan
  • Efficient ceramic lined infrared burner
  • Constructed on a solid stainless steel frame
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
TF-461 460 840 1130 71 65
TF-601 600 840 1130 92 N/A
