- Asian Styles -

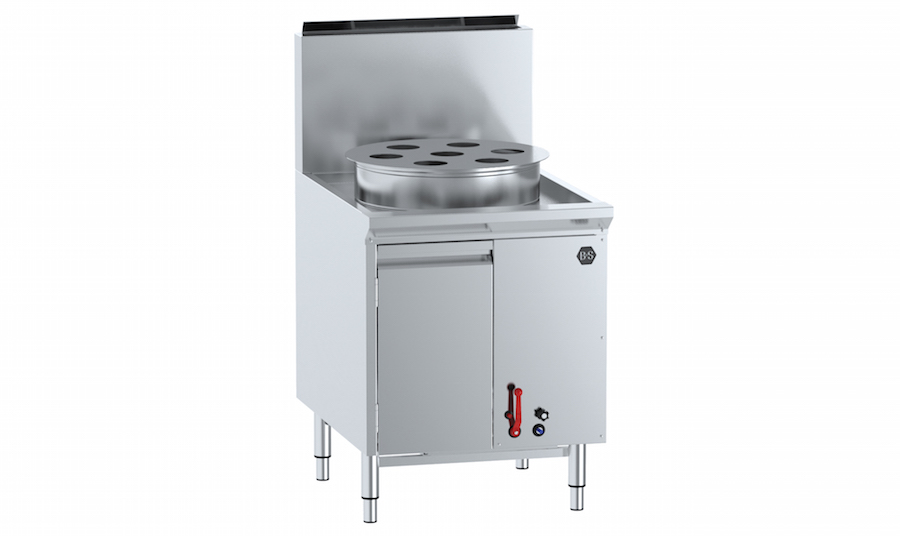

B+S Black Noodle Cooker

The B+S Black series noodle cooker has been designed to meet the changing needs of commercial kitchens. This multi-purpose cooker has been designed with for flexibility - it can be used not only for noodles, but also for pasta cooking, soup warming, ‘cheung fun’ rice pastry steaming and ‘yum-cha’ dumpling steaming.

The unit incorporates an inbuilt water overflow for removal of excess starch. It also features a basket insert self-closing mechanism for increased efficiency. A multi-setting gas valve allows for enhanced flame regulation, enabling both rapid boiling and simmering.

Features and Benefits

  • AISI 304 grade stainless steel
  • 2mm thick AISI 316 stainless steel tank
  • Multi-setting gas valve as standard for greater regulation of flame setting
  • Piezo ignition and flame failure
  • Cabinet mounted stainless steel interior and exterior frame
  • Swivel laundry arm easily controlled by front mounted tap
  • Inbuilt water overflow helps remove water impurities

Optional extras

  • 6 round noodle baskets or 6 square pasta baskets
  • 3 rectangular soup pots
  • Other configurations of baskets and pots are also available
  • Cheung fun insert comes with an aluminium perforated tray and a stainless steel cover
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
NC-6 460 840 1130 58 50
PC-6 460 840 1130 58 50
NC-SW3 460 840 1130 58 50
NC-4-SW-1 460 840 1130 58 50
NC-2-SW-2 460 840 1130 58 50
NC-CF 460 840 1130 58 50
NC-YC 460 840 1130 58 50
NC-9 600 840 1130 72 75
PC-9 600 840 1130 72 75

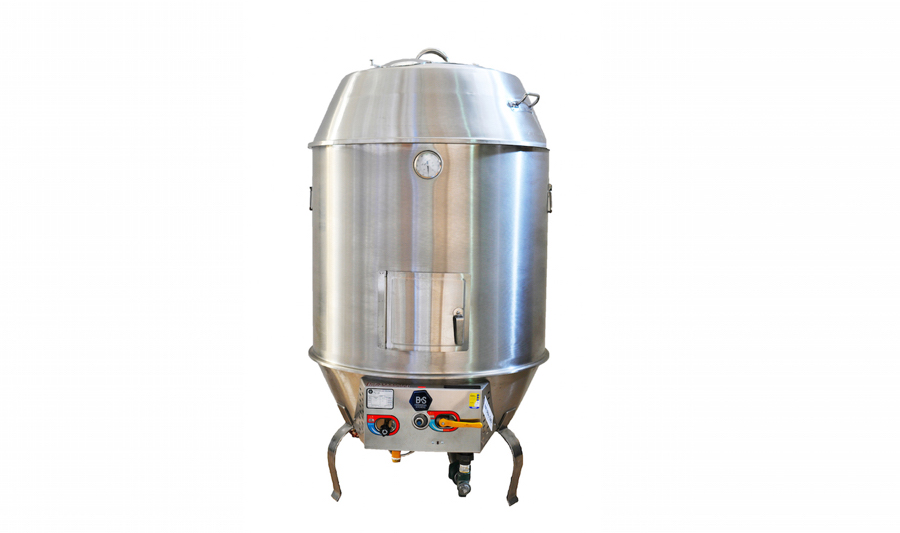

B+S Black Duck Oven

The B+S Black series duck oven has been specifically designed to produce a more even roast for duck, pork and other meats. Constructed with a thick stainless steel skin, it features volcanic rocks mounted on a grate above a powerful ring burner. This ensures that heat is radiated evenly throughout the oven chamber.

A lever handle gas control allows for greater regulation of flame setting, while flame failure and a safety overheat are fitted as standard.

Features and Benefits

  • AISI 304 grade stainless steel construction throughout
  • Flame failure as standard
  • Lever action gas control
  • Volcanic rock help distribute heat evenly
  • Oil drain and overflow valves
  • Excess fat drain off provided by duck hanging rail
  • Easily accessible duck hanging rail
  • Overheat safety device
  • Temperature display
Product
Code
Diameter Height
(mm)
NG
(Mj/h)
SPEC CAD
DR-800 800 1550 60

B+S Black Waterless HE Steamer

The B+S Black series waterless heat exchange (HE) steamer reduces water consumption in cooking operations such as yum cha and rice roll steaming. It is designed without the need for water deck cooling while ensuring that the exposed surface temperatures are kept to a minimum, preventing deck buckling. Meanwhile, heavy duty stainless steel frame construction durability and a long appliance lifespan.

The unit incorporates a concealed water-boiling chamber that is automatically filled as required. This not only eliminates the possibility of inadvertently leaving  water taps on, but also ensures that no more water than is needed for cooking is consumed. Steam generated from within the chamber is released into the steamer tray cooking area via a steam vent located on top of the appliance.

Using 15% less gas than other steamers on the market, the HE steamer is highly efficient while still providing excellent steaming performance. Water boils in less than 20 minutes from an ambient temperature of 20 degrees Celsius, while water consumption is reduced by up to 100 litres per hour.

Features and Benefits

  • AISI 304 grade stainless steel
  • Stronger supply of steam than conventional yum cha steamers
  • Water consumption reduced by up to 100 litres per hour
  • Cabinet mounted stainless steel exterior & interior
  • Lever handle gas control
  • Overheat safety device to prevent tank dry-boil
  • Piezo ignition and flame failure as standard
  • More efficient and lower gas consumption than traditional yum cha steamers
  • Water comes to boil in less than 20 minutes from ambient temperature of 20 degrees Celsius

Optional Extras

  • Cheung fun insert
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
YCJSF-1HE 700 900 1300 88 85
CFPSF-1HE 700 900 1300 88 85

B+S Black Waterless Pot Steamer

The B+S Black series Pot Steamer has been designed to meet the vigorous demands of Asian fast food kitchens and restaurants.

This unit is heavily constructed on an inner stainless steel frame that prolongs your appliance’s life. Knowing how demanding the yum cha trade is, B+S has designed a steamer, which can handle the demanding trading period.

Driven by a powerful 170 Mj, 32-jet burner, this unit has a ceramic lined heating chamber. This ensures maximum heat is retained within the chamber required to heat the heavy-duty water pot.

Features and Benefits

  • AISI 304 grade stainless steel
  • Stainless steel water pot has a 64-litre water capacity, which has a built-in water over flow
  • Swivel laundry arm which feeds into the water pot ensuring continuous water flow
  • No water deck cooling required
  • Water retaining lip allows for water conservation
  • Front mounted controls for laundry arm
  • Piezo ignition and flame failure as standard
  • Pressed 1.5mm thick stainless steel top ensures longevity of unit and eliminates chance of water leak to underside of unit
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
YCJSF-1 750 900 1300 170 98

B+S Black Waterless Stock Pot Cooker

The B&S Black series waterless stock pot cooker delivers high performance while reducing your kitchen’s water consumption. The need for water deck cooling is eliminated through the inclusion of an air gap between the ring and the cooking deck, which ensures that exposed surface temperatures are kept to a minimum. Combined with a timed water flow to the laundry arm, this also serves to reduce water usage.

This unit is powered by an 105Mj 24 jet chimney burner or 126Mj 18 jet duck burner, both fitted with flame failure. The cast-iron trivet with extended fingers allows for efficient gas combustion, while lever handle gas control enables greater regulation of flame setting. The heavily insulated long skirt unflued cast iron ring minimises radiant heat.

The cooker incorporates a solid AISI 304 stainless steel frame and thick stainless steel plate, ensuring a long appliance lifespan. Ease of cleaning is enhanced through features such as a front waste gutter and 1.5mm pressed top.

Features and Benefits

  • AISI 304 grade stainless steel
  • Combination of no water deck cooling and timed water flows to the laundry arm ensures a reduction in water consumption, resulting in a decrease in sewerage usage and waste discharge fees
  • Pressed top allows for easy cleaning around ring area
  • Lever action gas control
  • Front waste gutter allows for greater ease in cleaning
  • Heavily insulated long skirt unflued cast iron rings eliminates radiant heat.
  • Heavy duty stainless steel frame construction throughout
  • 1.5mm thick top ensuring prolonged life

Optional extras

  • Duck burners (DB)
  • Chimney burners (CB)
Chimney
Burners
Duck
Burners
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
UFWWSPD-1 650 900 1300 105 75 126 90

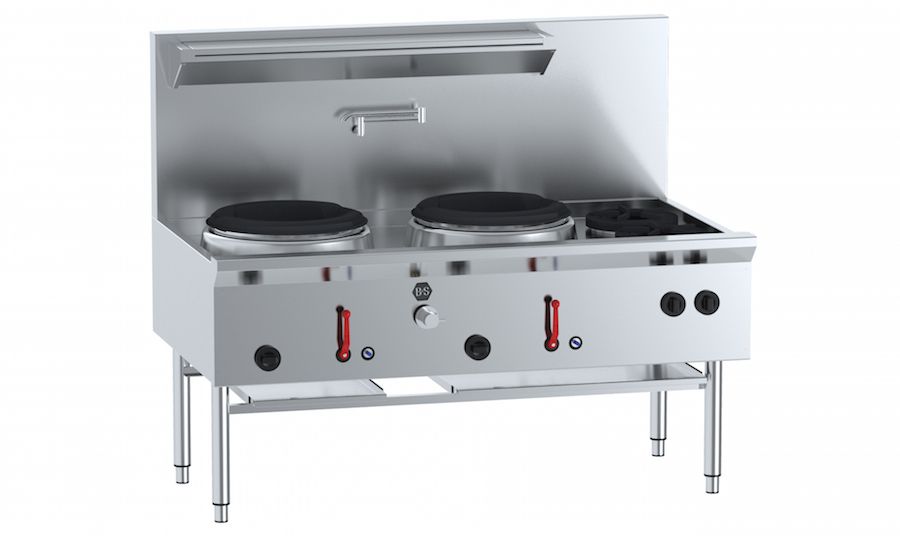

B+S Black Waterless Wok Table

The B&S Black series waterless wok table is constructed with a AISI 304 solid stainless steel frame and thick stainless steel plate, ensuring a long appliance lifespan.

The design features an air gap located between the ring and the cooking deck, which eliminates the need for water deck cooling. This ensures that exposed surface temperatures are kept to a minimum, preventing buckling. No water deck cooling is required. A heavily insulated long skirt unflued cast iron rings eliminates radiant heat.

The unit is powered by a 105Mj 24 jet chimney burner or 126Mj 18 jet duck burner, both of which are fitted with flame failure. A lever handle gas control allows for greater regulation of flame setting which is essential during peak periods.

The deck is a 1.5mm pressed top, which enables ease of cleaning around the ring area. Front waste gutter allows for additional ease in cleaning.

Features and Benefits

  • AISI 304 grade stainless steel
  • Choice of Chimney or Duck Bill burners fitted with flame failure
  • Combination of no water deck cooling and timed water flows to the laundry arm ensures a reduction in water consumption, resulting in a decrease in sewerage usage and waste discharge fees
  • Lever action gas control
  • Pressed top allows for easy cleaning around ring area
  • Front waste gutter allows for greater ease in cleaning
  • 340mm dia. heavily insulated long skirt unflued cast iron rings eliminates radiant heat.
  • Heavy duty stainless steel frame construction throughout
  • 1.5mm thick top ensuring prolonged life

Optional Extras

  • 430mm dia. heavily insulated long skirt unflued cast iron rings
  • Duck burners (DB)
  • Chimney burners (CB)
Chimney Burners Duck Burners
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
LPG
(Mj/h)
NG
(Mj/h)
LPG
(Mj/h)
SPEC CAD
UFWWD-1 600 900 1300 105 75 110 90
UFWWD-1L 650 900 1300 105 75 110 90
UFWWD-2 1200 900 1300 210 150 220 180
UFWWD-2SB2 1550 900 1300 250 190 260 220
UFWWD-3 1800 900 1300 315 225 330 270

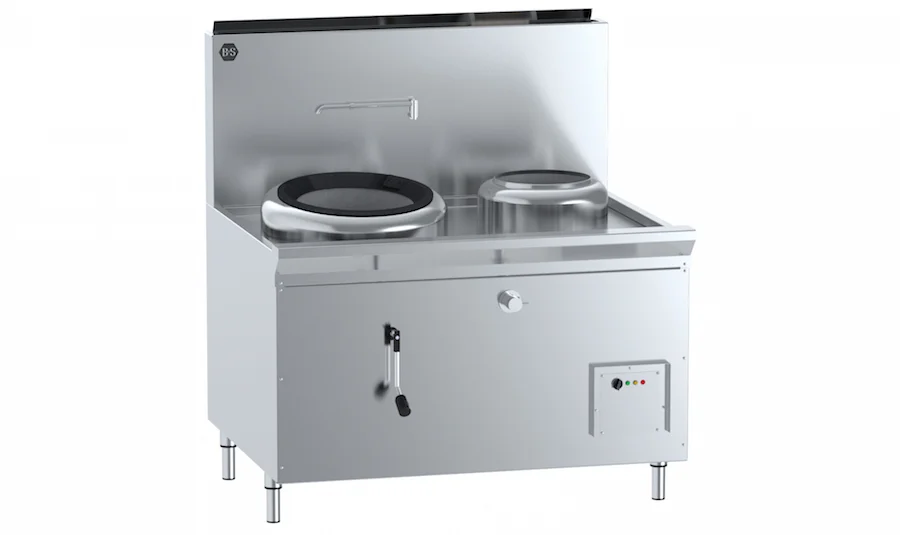

B+S Black HI-PAC Wok Cooker

AUSTRALIAN PATENT APPLICATION 2013205958

The B+S Black series HI-PAC wok cooker is essential for contemporary  Asian restaurants in meeting the demands of high turnover and quick response times. The unit incorporates the latest in gas combustion technology, along with a heavy duty steel frame that’s built to last.

Features include a ceramic lined heating chamber with a flue system, which directs hot air to a rear pot for boiling water. This model does not require water deck cooling, thereby reducing water consumption and costs.

The air-forced burner can be smoothly regulated using the B+S-designed lever action brass valve. The control box incorporates a flame failure safety device and auto-ignition function, as well as a working status indicator.

Features and Benefits

  • AISI 304 grade stainless steel
  • Powered by a powerful and efficient 165Mj air forced burner
  • Flame failure safety device and auto ignition function
  • Working status indicator
  • Ceramic lined wok chamber
  • Water tap handles located at the front of the appliance ensuring chef’s hands are protected from heat emitted by burner.
  • Lever handle gas controls
  • Solid stainless steel frame construction throughoutto prolong life span of the appliance.
  • No deck cooling required
  • Telescopic laundry arm

Optional Extras

  • Dual and triple wok table
  • Position of pot ring can be on the left or right
  • Low splash back
  • Plinth model
  • Natural Gas (NG) only
Product
Code
Length
(mm)
Depth
(mm)
Height
(mm)
NG
(Mj/h)
SPEC CAD
CCF-HP1 800 950 1300 165
CCF-HP1+1R 1200 950 1300 165
CCF-HP1+1L 1200 950 1300 165
